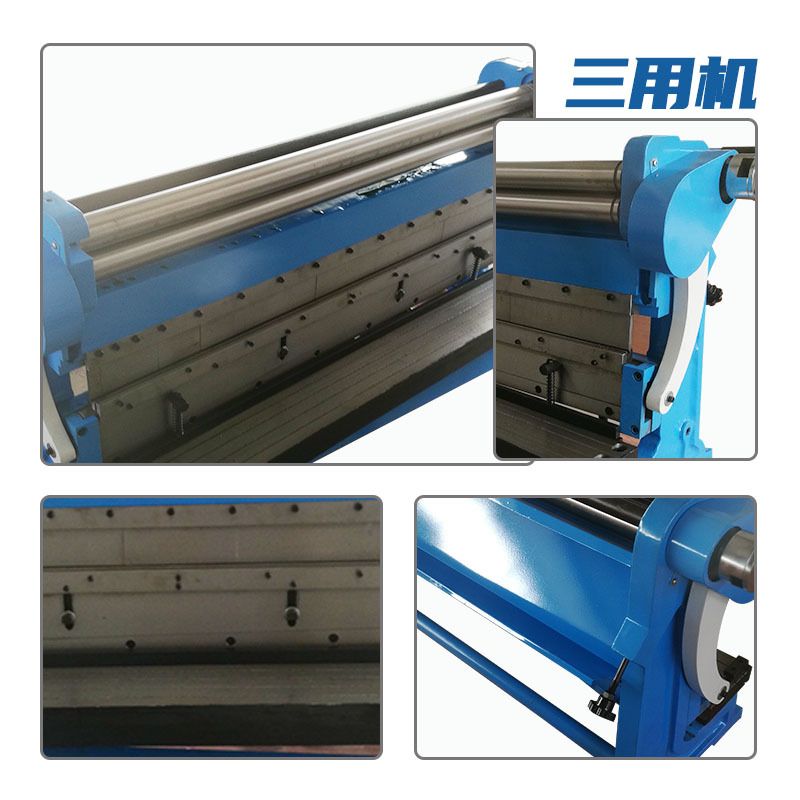

Brake, shear & roll 3-in-1 machine
A 3-in-1 machine integrates three critical metalworking tools — brake for bending, shear for cutting, roll for curving — into a single, space-saving unit. It eliminates the need for separate equipment, saving space, time and costs.
What a 3-in-1 machine is
In the world of metal fabrication, efficiency and versatility are paramount. The brake, shear and roll 3-in-1 machine combines three essential functions — bending, cutting and rolling — into a single, space-saving unit. A working shop that does all three, at modest volume, gets three machines’ work out of one footprint.
Key features and specifications
Material compatibility
- Thickness: shearing typically handles 10–16 gauge (0.135–0.060 inches) for steel, with some models capable of cutting up to 1/4-inch materials; bending suits 16–22 gauge metals; rolling handles 18–22 gauge
- Width capacity: 30 inches (small workshops) to 120 inches (industrial use)
- Material types: ferrous metals (steel, stainless steel) for structural components; non-ferrous metals (aluminium, copper) for lightweight or decorative applications
Bending capabilities
- Bend length matches the machine’s width capacity (a 48-inch machine bends up to 48 inches)
- Bend angle adjustable up to 135°, with angle gauges for precision
- Tonnage typically 10–20 tons — sufficient for most light to medium-duty applications
Shearing capabilities
- Cutting length matches the width capacity
- Replaceable blades for clean cuts on various materials
- Cutting accuracy ±0.1 mm for high-precision tasks
Rolling capabilities
- Roll diameter: cylinders as small as 6 inches
- Roll thickness: 18–22 gauge metals
- Manual or hydraulic adjustments for precise curvature
Control systems and footprint
- Manual: hand-operated levers and pedals for small-scale projects
- Hydraulic: fluid-powered systems for heavy-duty tasks with reduced operator effort
- CNC: computer-controlled models for automated, high-precision operations
- Footprint: compact designs save workshop space; weight from 500 lbs (benchtop) to 2,000 lbs (industrial); some models have wheels or casters
Types of 3-in-1 machines
- Manual 3-in-1 machines — hand-operated levers, lowest cost, ideal for hobbyists and small workshops
- Hydraulic 3-in-1 machines — fluid-powered, higher capacity and less operator effort for production work
- CNC 3-in-1 machines — automated back gauges and programmable sequences for repeat work
Applications
- HVAC duct work — cuts, bends and rolls sheet in one setup
- Automotive and motorsport panels — small curved sections and brackets
- Maintenance and repair shops — one machine covers the odd job mix
- Educational and training workshops — three processes on one bench
Maintenance essentials
- Regular lubrication of moving parts and rollers
- Blade inspection and replacement for clean cuts
- Checking clamp and bend mechanisms for wear
- Keeping the machine level and anchored for accurate bends
