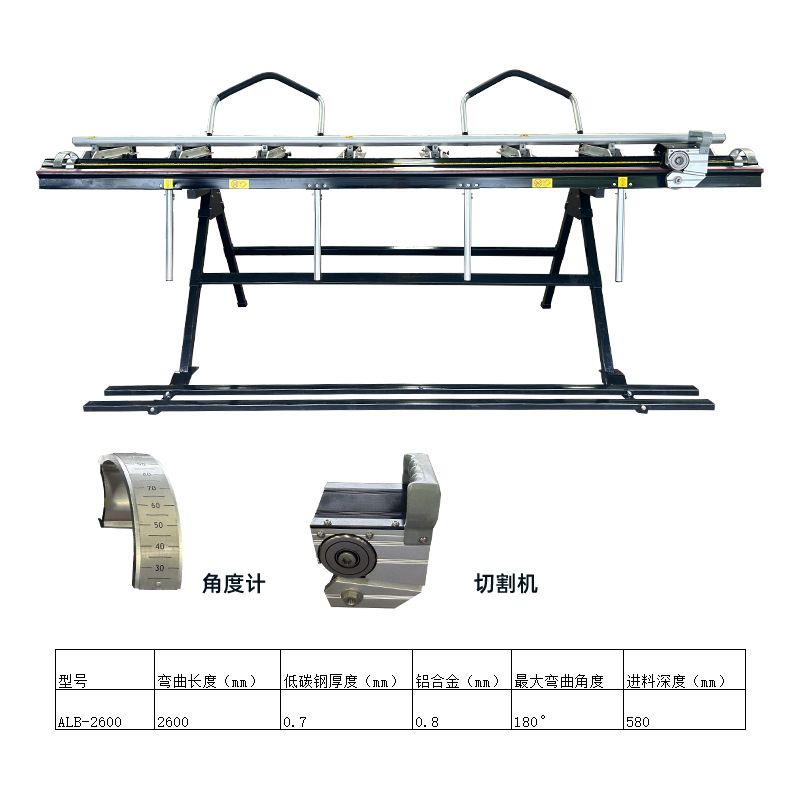

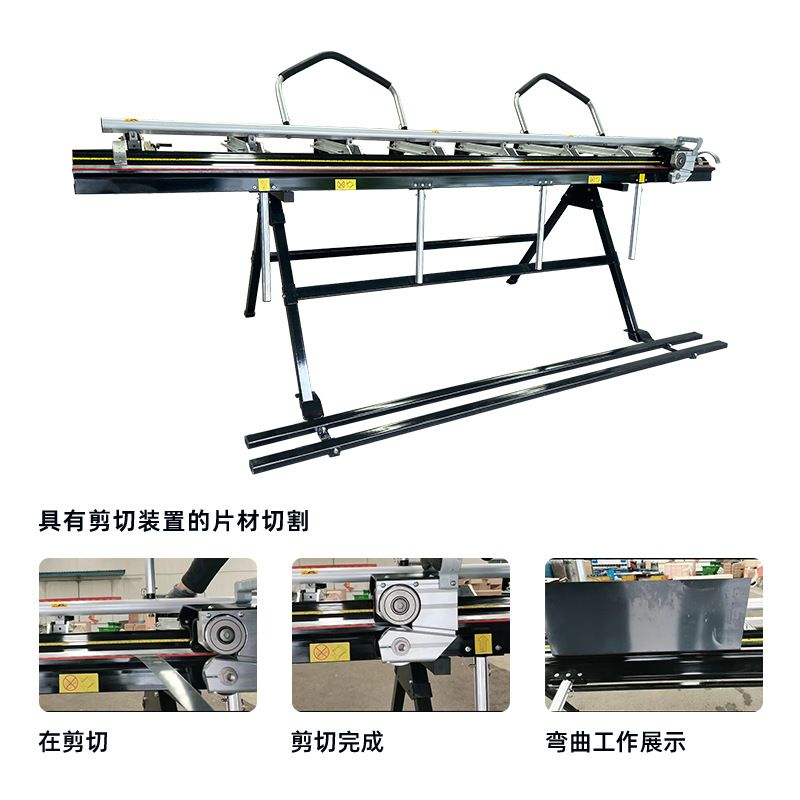

Brake and shearer 2-in-1
The KECMT manual brake and shear 2-in-1 system combines two critical processes — sheet metal braking (bending) and sheet metal slitting (cutting) — into a single, space-saving machine. Maximum working width 3200 mm, adjustable back gauge, and a manual lever mechanism with tactile control for low-volume or custom jobs.
What the system is
The KECMT manual brake and shear 2-in-1 system represents a versatile innovation in sheet metal fabrication, combining two critical processes — sheet metal braking (bending) and sheet metal slitting (cutting) — into a single, space-saving machine. Designed for workshops and industrial applications requiring high precision and efficiency, this system supports a maximum working width of 3200 mm, making it suitable for large-scale sheet metal processing.
Core functions
Sheet metal braking
- Bends sheet metal up to 3200 mm in length and 6 mm in thickness for mild steel in the heavy models
- Adjustable back gauge system ensures repeatable accuracy (±0.1 mm) for complex bends
- Manual lever mechanism provides tactile control for operators — ideal for low-volume or custom jobs
Sheet metal slitting
- Slits materials up to 3200 mm in width and 4 mm in thickness (stainless steel, aluminium, galvanised sheets)
- Dual-action blade design (upper and lower shear blades) ensures clean, burr-free cuts
- Adjustable blade clearance (0.05–0.5 mm) accommodates varying material hardness
Technical specifications
| Parameter | Specification |
|---|---|
| Max workpiece width | 3200 mm |
| Bending thickness | ≤2 mm mild steel / ≤1 mm stainless steel |
| Slitting thickness | ≤1.5 mm stainless steel / ≤2 mm aluminium |
| Blade material | High-carbon alloy steel (HRC 58–62) for wear resistance |
| Back gauge resolution | ±0.1 mm (digital readout optional) |
| Manual lever force | ≤30 kg (ergonomic design for reduced operator fatigue) |
| Footprint | 4500 × 1800 × 1400 mm (compact layout for workshop integration) |
| Weight | ~500 kg (sturdy welded steel frame with anti-vibration pads) |
Key features
- Integrated design — combines bending and slitting functions, eliminating the need for separate machines; a modular tooling system allows quick switching between bending dies and shear blades
- Precision control — adjustable back gauge with ±0.1 mm resolution and optional digital readout
- Durability — high-carbon alloy steel blades at HRC 58–62, welded steel frame with anti-vibration pads
- Ergonomics — manual lever force ≤30 kg, designed for reduced operator fatigue over a full shift
Applications

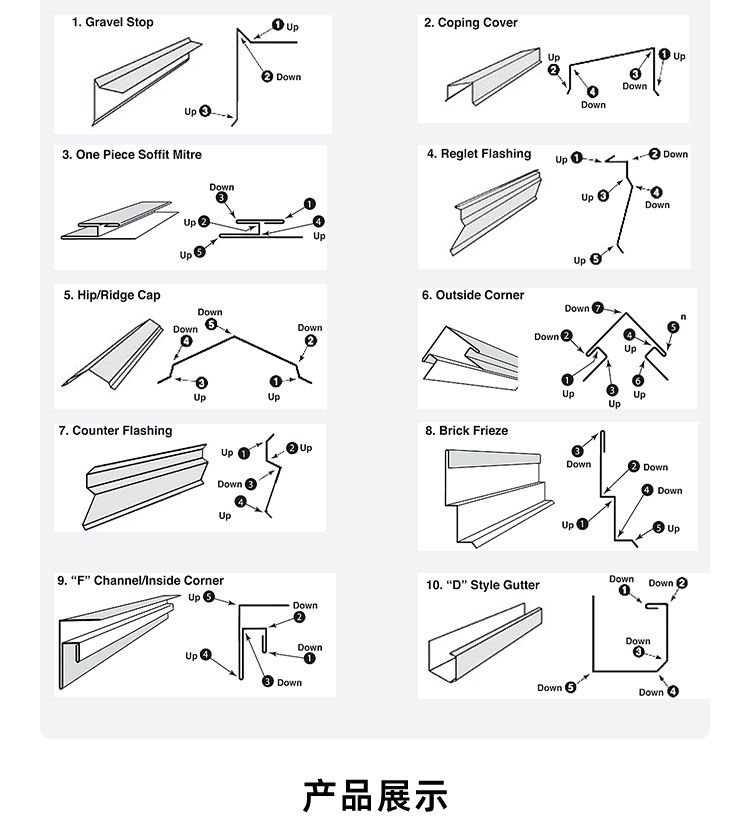

- Flashing, cladding and roofing panel work
- HVAC duct and fitting fabrication
- Small-batch custom sheet metal jobs where setup time decides profitability
- Workshops where floor space cannot take a press brake and a separate guillotine
